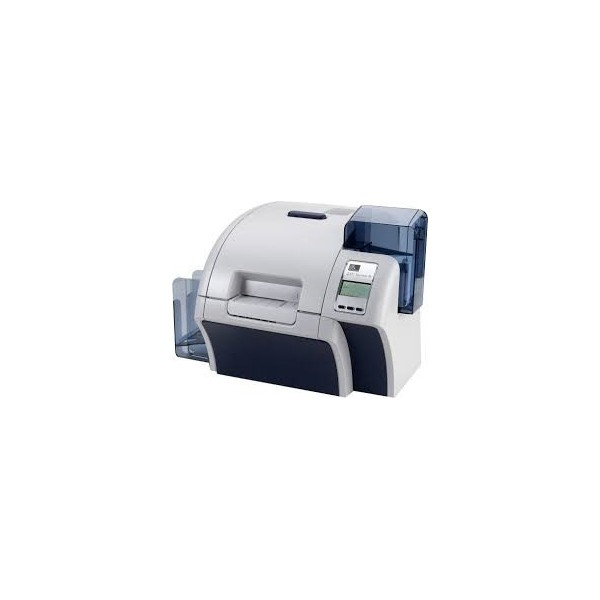

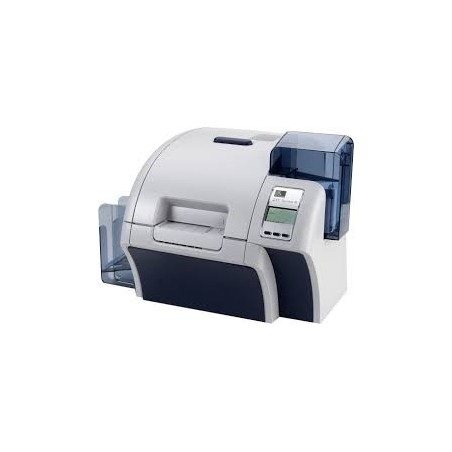

Zebra ZXP Series 8

Zebra ZXP Serie8 card printer

More Standard Features:

Single-card feed capacity
21-character, 6-line LCD operator display
Lockable card feeder
Two year limited printer, and lifetime printhead warranty
304 dpi (12 dots/mm) print resolution
Uses True Colours i Series intelligent media

Printer Specifications:

Single or Dual-sided
Color Capability: Full Color, Monochrome
Print Method: Retransfer
Dual-sided (single pass)
Card Feeder: Single Card Feeder
Integrated Card Feeder
Card Feeder/Hopper Capacity
150 card capacity card feeder (30 mil)
100 card output hopper (30 mil)
Memory: 64 MB memory (standard)

Print speed:
190 cards/hr Single-sided print (YMC)
180 cards/hr Dual-sided print (YMCK)

Ribbons:

Zebra True Colours i Series ribbons with intelligent RFID technology to authenticate and automate ribbons
YMCK ribbon – 625 images/roll
YMCKK ribbon – 500 images/roll
YMCUvK – 500 images/roll
YMCKI – 500 images/roll
YMCKKI – 415 images/roll
YMC – 800 images/roll
Monochrome Black – 2500 images/roll
Transfer Film Zebra True Colours i Series transfer film: 1250 images/roll single-side, 625 images/roll dual-sided

Operating Characteristics:

Operating temperature: 59° F (15° C) to 77° F (25° C)
Storage temperatures: 23° F (-5° C) to 131° F (55° C)
Operating humidity: 20% to 80% non-condensing
Storage humidity: 10% to 90% non-condensing
Electrical: 100-240V AC and 50-60 Hz
Auto-sensing single-phase AC power
Physical Characteristics
Width: 18.75" (476 mm)
Height: 13.2" (334 mm)
Depth: 20.4" (519 mm)
Weight: 27.5 lbs (12.5 kg)

Card Encoding Options:

Magnetic stripe encoder ISO 7811, 3 tracks, HiCo/LoCo, stripe down
Smart card contact station ISO 7816
Combined MIFARE ISO 14443 (13.56 HHz) contactless and ISO 7816 contact encoder
Options
Lockable enclosure
Extended warranty programs

Communication and Interface Capabilities:

USB V2.0 (standard)
10/100 Ethernet (standard)
802.11 b/g wireless (option)
Programming Languages
Core programming languages: XML
Bar Codes/Symbologies
Linear: Other Symbologies via Windows Driver
Fonts and Graphics: True Type or other type fonts via Windows driver
Card Detail
Card Types
EMV Certified
PVC, Composite PVC, ABS, PET, PET-G, Teslin Composite
Specialty cards: transparent, translucent (clear and colored)
Technology cards: magnetic stripe, contact smart, contactless smart, UHF RFID
Card Size: CR-80 size, ISO 7810 format, Type 1D-1
Card Thickness: 30 mil – 40 mil
