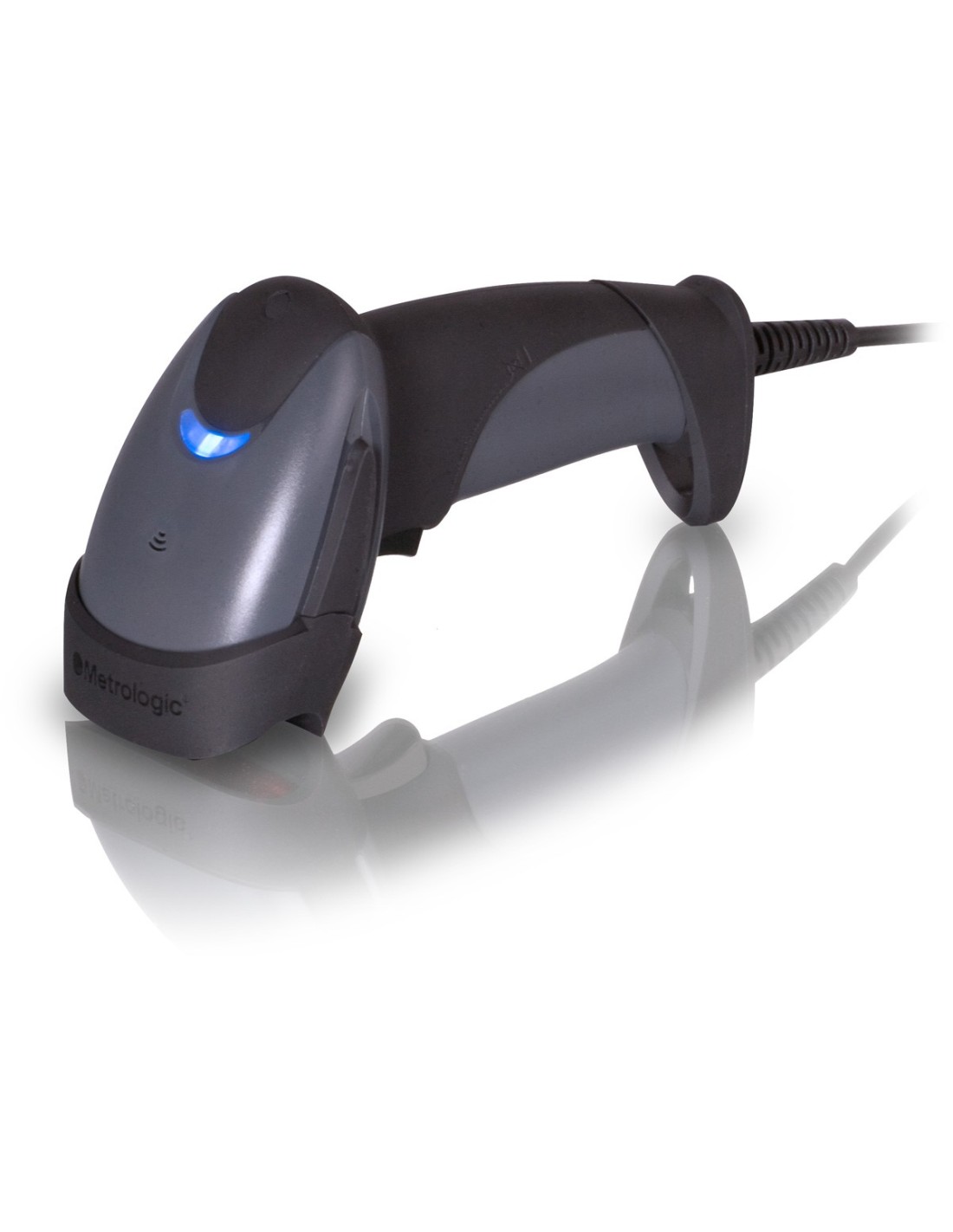

Metrologic MS9590 Voyager GS

OPERATIONAL

Light Source 650 nm ± 10 nm VLD

Laser Power Less than 1 mW (peak)

Decode Capability

Autodiscriminates all standard 1D bar codes; for others call a

Metrologic service representative

System Interfaces RS232, USB, Keyboard Wedge, and 46xx RS485

Number Characters Read Up to 80 data characters

Beeper Operation 7 tones or no beep

Indicators (LED)

Blue = unit powered, ready to scan; White = good read; Yellow

Steady = CodeGate is inactive

MECHANICAL

Height 160 mm (6.3”)

Depth 100 mm (3.93”)

Width Handle: 28 mm (1.10”); Head: 65 mm (2.56”)

Weight 150 g

ELECTRICAL

Input Voltage 5 VDC ± 0.25 V

Power Operating: 650 mW; Standby: 375 mW (typical)

Current Operating: 130 mA @ 5VDC; Standby: 75mA @5VDC (typical)

DC Transformers Class II; 5.2V @ 1 A

Laser Class

Class 1; IEC60825-1:1993/A1:1997+A2:2001

Class 1; EN60825-1:1994+A11:2002+A2:2001

EMC FCC Class B

ENVIRONMENTAL

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -40°C to 60°C (-40°F to 140°F)

Humidity 5% to 95% relative humidity, non-condensing

Light Levels Up to 4842 Lux (450 foot candles)

Shock Designed to withstand 1.5 m (5’) drops

SCAN PERFORMANCE

Depth of Scan Field

0 mm - 305 mm (0” - 12”) for 0.330 mm (13 mil) bar

codes @ default

Width of Scan Field 50 mm (2”) @ face; 300 mm (11.8”) @ 305 mm (12”)

Scan Pattern Single scan line

Scan Speed 100 scan lines per second

Minimum Element Width 5 mil (0.127 mm)

Print Contrast 35% minimum reflectance difference
