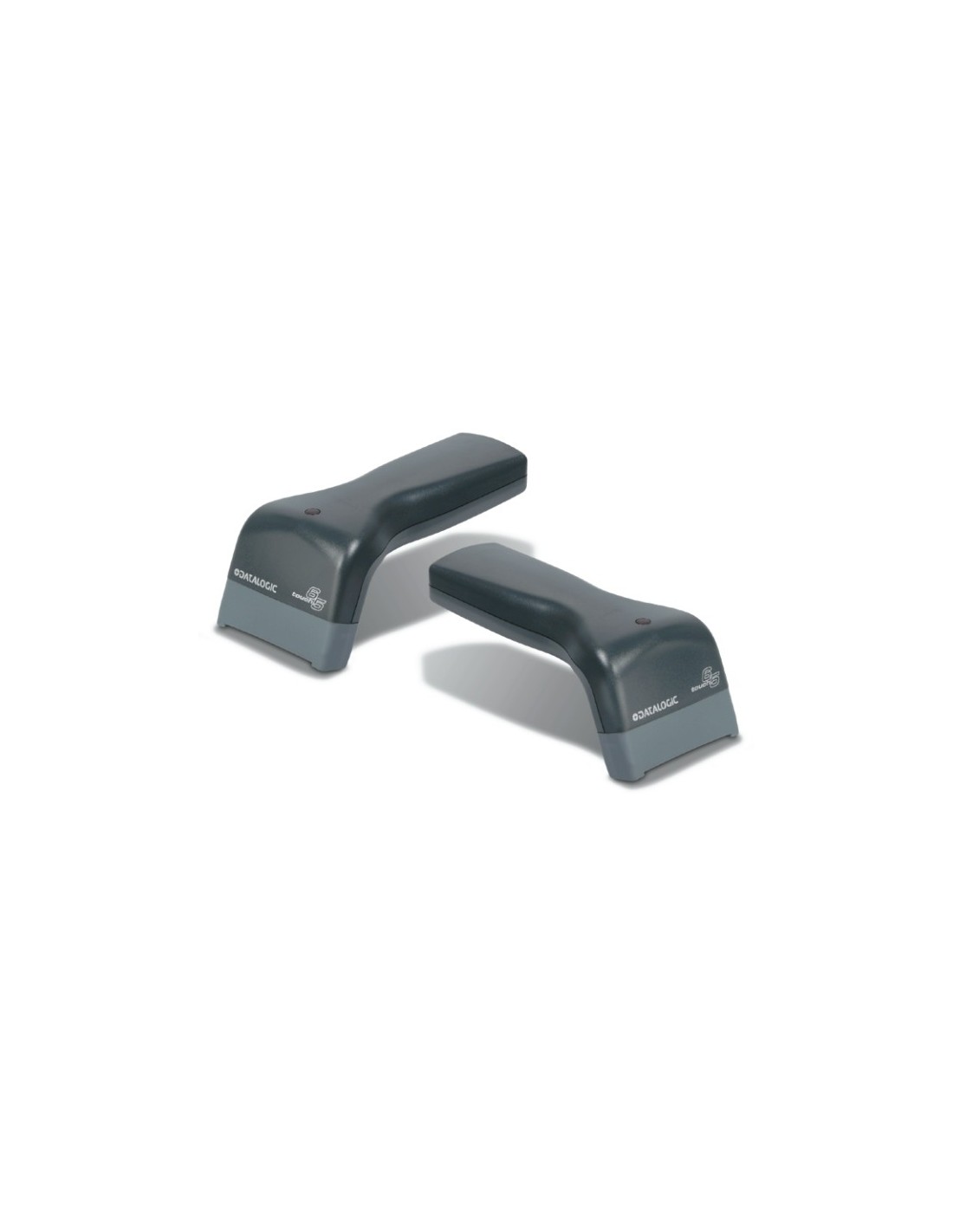

Datalogic Touch 95 USB

Decoding Capability

1D / Linear Codes

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes

GS1 DataBar Expanded Stacked

GS1 DataBar Stacked

GS1 DataBar Stacked Omnidirectional

Electrical

Current

Operating (Typical)

100 mA @ 5 VDC

Standby/Idle (Typical)

< 500 µA @ 5 VDC

Input Voltage

5 VDC +/- 5%

Environmental

Ambient Light

0 - 2,000 lux

Drop Resistance

Withstands repeated drops from 1.2 m / 3.9 ft onto a concrete surface

ESD Protection (Air Discharge)

16 kV

Humidity (Non-Condensing)

90%

Particulate and Water Sealing

IP30

Temperature

Operating

0 to 55 °C / 32 to 131 °F

Storage/Transport

-20 to 70 °C / -4 to 158 °F

Interfaces

Keyboard Wedge

65/90 Light

RS-232 / USB / Keyboard Wedge / Wand Multi-Interface

65/90 Pro

USB

65/90 Light

Wand

65/90 Light

Physical Characteristics

Colors Available

Dark Grey

Other colors and custom logo options are available for minimum quantity purchase.

Dimensions

Touch 65

16.4 x 7.8 x 6.3 cm / 6.5 x 3.0 x 2.5 in

Touch 90

17.5 x 10.0 x 8.0 cm / 6.9 x 3.9 x 3.1 in

Weight

Touch 65

160.0 g / 5.6 oz

Touch 90

195.0 g / 6.9 oz

Reading Performance

Imager Sensor

CCD Solid-state 2048 pixels

Print Contrast Ratio (Minimum)

Light Models

25%

Pro Models

15%

Read Rate (Maximum)

256 reads/sec.

Reading Indicators

Beeper (Adjustable Tone)

Good Read LED

Resolution (Maximum)

Touch 65

0.100 mm / 4 mils

Touch 90

0.130 mm / 5 mils

Reading Ranges - Typical Depth of Field

Minimum distance determined by symbol length and scan angle.

Printing resolution, contrast, and ambient light dependent.

5 mils

0 to 2.5 cm / 0 to 1.0 in

7.5 mils

0 to 4.3 cm / 0 to 1.7 in

10 mils

0 to 5.0 cm / 0 to 2.0 in

13 mils

0 to 6.8 cm / 0 to 2.7 in

20 mils

0 to 8.0 cm / 0 to 3.2 in

Safety & Regulatory

Agency Approvals

The product meets necessary safety and regulatory approvals for its intended use.

The Quick Reference Guide for this product can be referred to for a complete list of certifications.

Environmental Compliance

Complies to China RoHS

Complies to EU RoHS

Utilities

Datalogic Aladdin™

Datalogic Aladdin configuration program is available for download at no charge

OPOS / JavaPOS

JavaPOS Utilities are available for download at no charge

OPOS Utilities are available for download at no charge

Warranty

5-Year Factory Warranty
