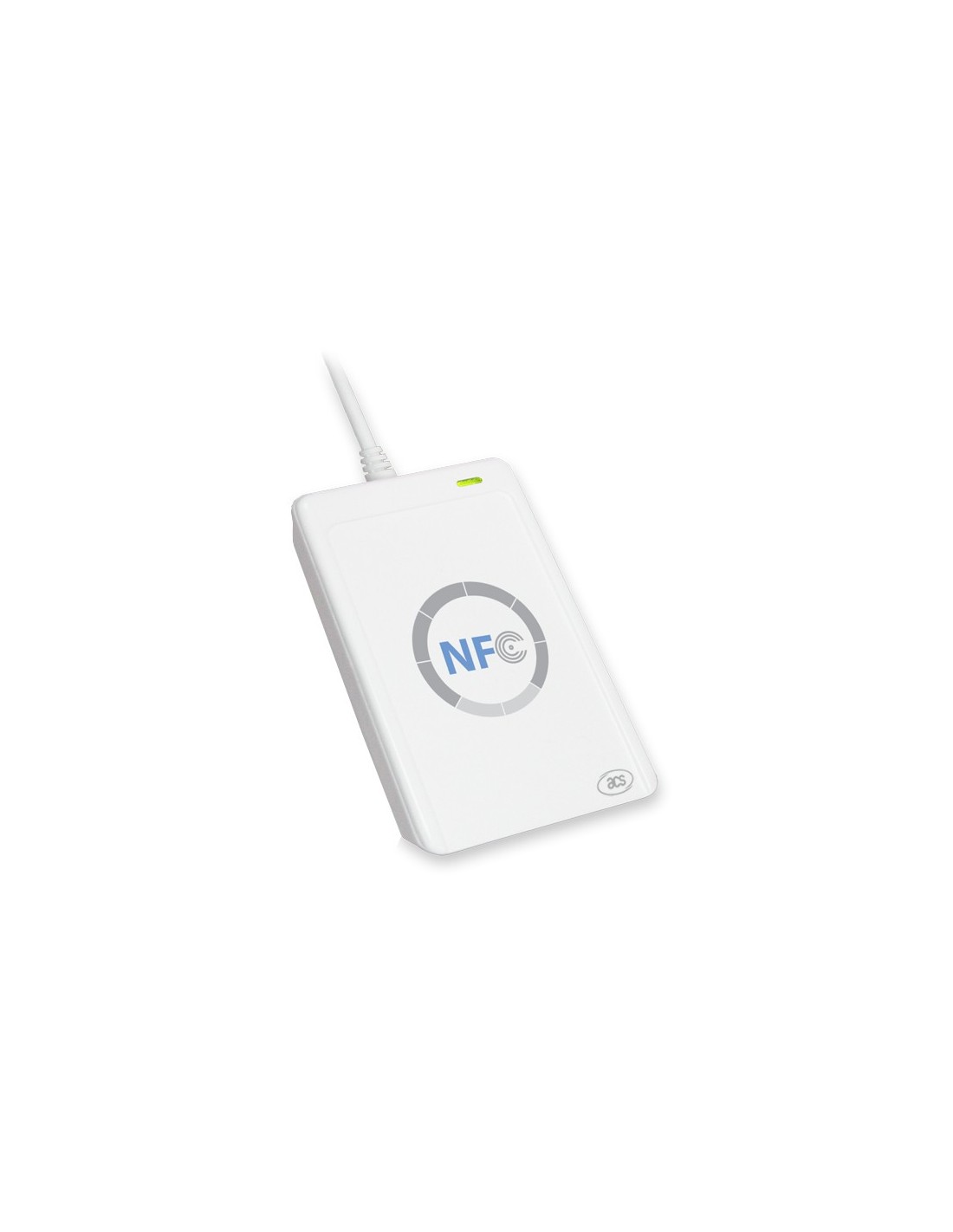

ACR122U NFC Contactless Smart Card Reader

- the World’s First NFC Card Reader compliant to CCID Standard

The ACR122 is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only Mifare® ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.

The ACR122 is a USB Plug and Play device with CCID compliance. It is also PC/SC compliant which allows interoperability for different applications development. It is ideal for both secure personal identity verification and online micro-payment transactions. Typical applications of the ACR122 reader include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122 can read and write faster and more efficiently. The proximity operating distance of ACR122 is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122 is suitable for logistics and supply chain management.

In order to increase the security level, the ACR122 can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122 is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.

With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122.

 ACR122 reader standard features:

*USB Full Speed (12 Mbps)

*USB PnP

*Bi-Color LED

*Built-in Antenna

*NFC Reader

*ISO/IEC18092 (NFC) compliant

*NFC Tags Access Speed = 424 kbps

*Contactless Smart Card Reader

*Support FeliCa card

*Support ISO 14443 Type A & B cards

- MIFARE® cards (Classics, DESFire)

*PC/SC and CCID Compliant

*CE and FCC Certificated

*RoHS Compliant

*User Controllable Buzzer (optional)

*SAM Socket (optional)

 Typical applications:

*Home Banking and Home Shopping

*E-commerce

*Checking the balance of electronic purses

*Network access control

*Customer Loyalty Program

*Identification and Authentication

*Ticketing

*Online gaming

*Parking and toll collection

*Automatic Fare Collection

*Public Transportation Terminals

*Physical Access Control

*Time attendance

*Vending machines

*Contactless public phones

*Logistics and supply chain management

 Technical Specifications:

Dimensions98 mm (L) x 65 mm (W) x 12.8 mm (H)

Weight70 grams

InterfaceUSB Full Speed

Operating Distance

Supply VoltageRegulated 5V DC

Supply Current200mA (operating); 50mA (standby); 100mA (normal)

Operating Temperature0-50°C

Operating Frequency13.56 MHz

Compliance/CertificationsISO14443 1-4, CE, FCC, RoHS Compliant

Operating System Support
